The three types of lamp holders are:
E27/E26 (Standard Edison screw)
B22 (Bayonet cap)
GU10 (Twist and lock)
In Europe, the most popular type of lamp holder is the E27 (Standard Edison screw). It is widely used in many countries in Europe for general purpose lighting in homes and businesses. The E27 is compatible with a wide range of light bulbs, making it a versatile choice for many applications.
The most popular type of lamp holder is the E26 which is commonly used in North America and other regions for general purpose lighting in homes and businesses. The B22 (Bayonet cap) is also widely used, especially in the UK and other Commonwealth countries. The GU10 (Twist and lock) type is commonly used for spotlights and other directional lighting applications.
You can distinguish the difference between the three types of lamp holders based on the following characteristics:

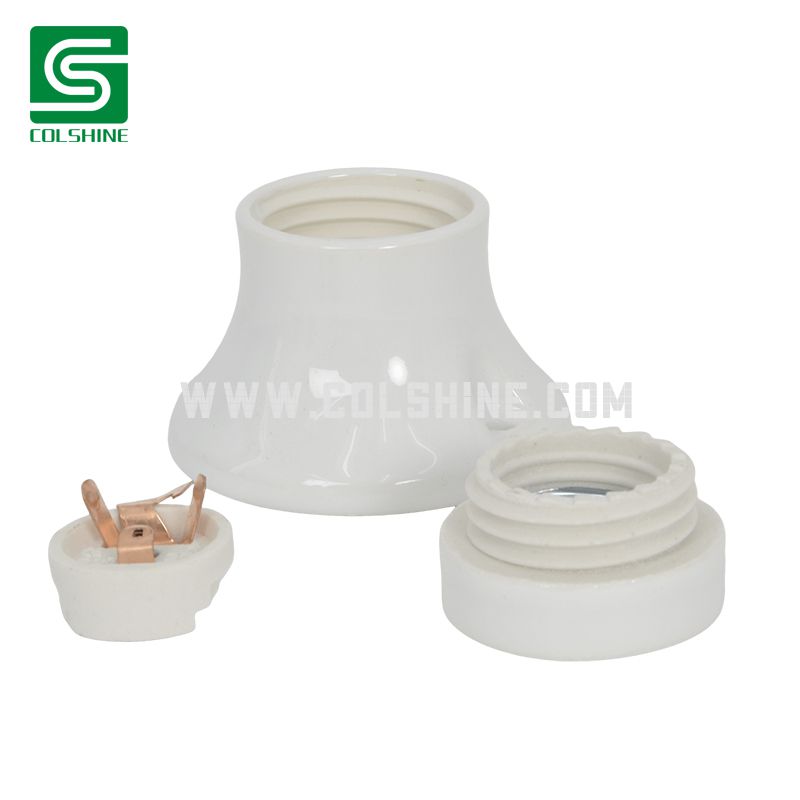

E27/E26 (Standard Edison screw): It has a medium screw base and is 26-27mm in diameter. It is recognized by its threaded screw-in design and is the most commonly used type in Europe.
B22 (Bayonet cap): It has a bayonet fitting that consists of two pins that push into the lamp holder and then twist to secure the lamp. It is 22mm in diameter and is commonly used in the UK and other Commonwealth countries.

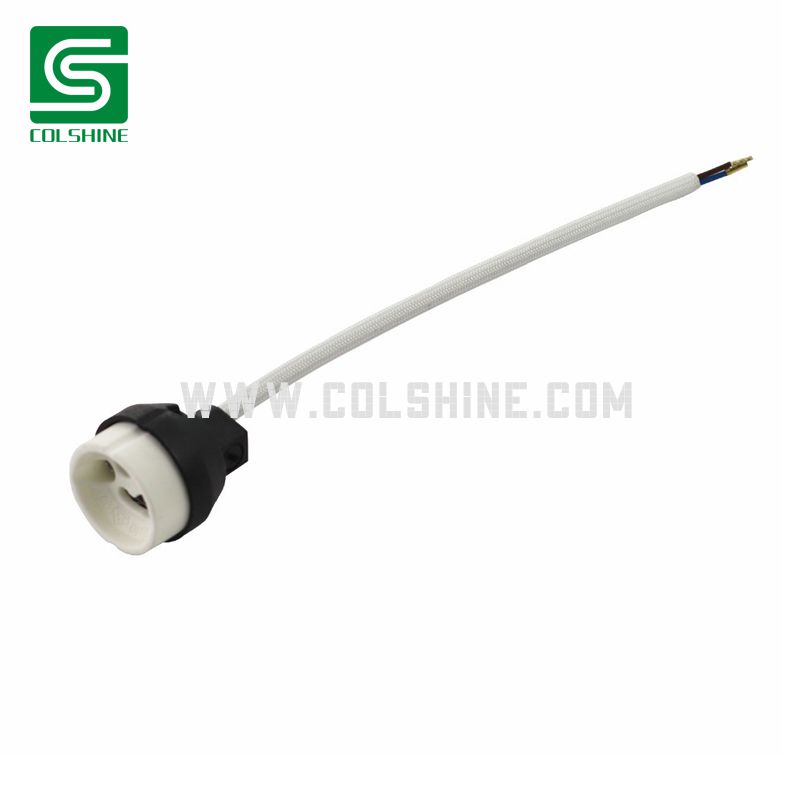

GU10 (Twist and lock): It has a small twist-and-lock base and is 10mm in diameter. It is commonly used for spotlight and other directional lighting applications, and has two pins on the base that fit into a socket.
It is important to make sure that you choose the correct type of lamp holder for your specific application, as using the wrong type may result in safety hazards or poor performance.
