G9 porcelain oven lamp and socket

Scan the QR code

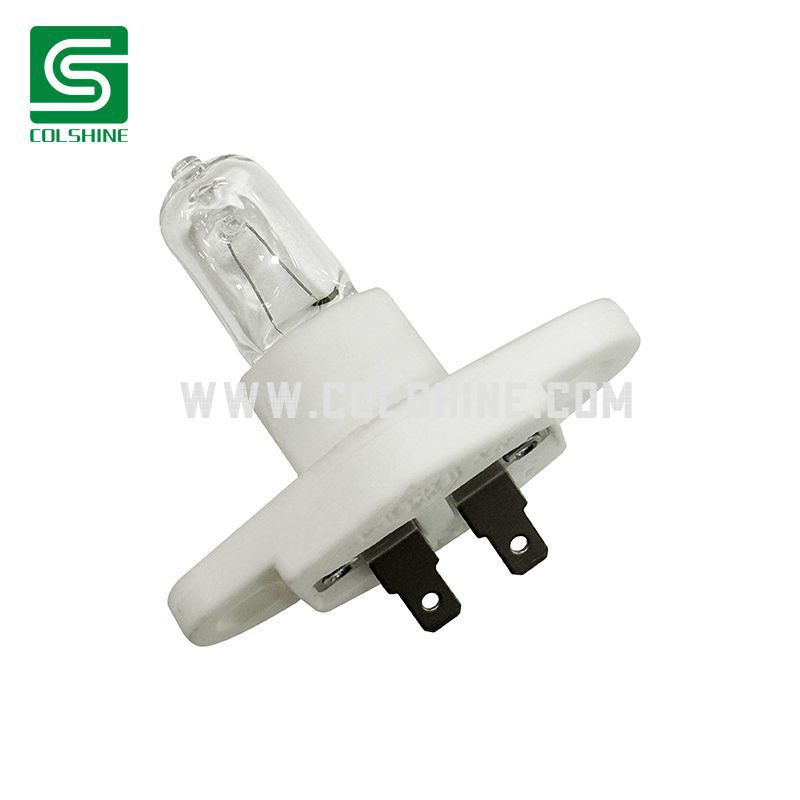

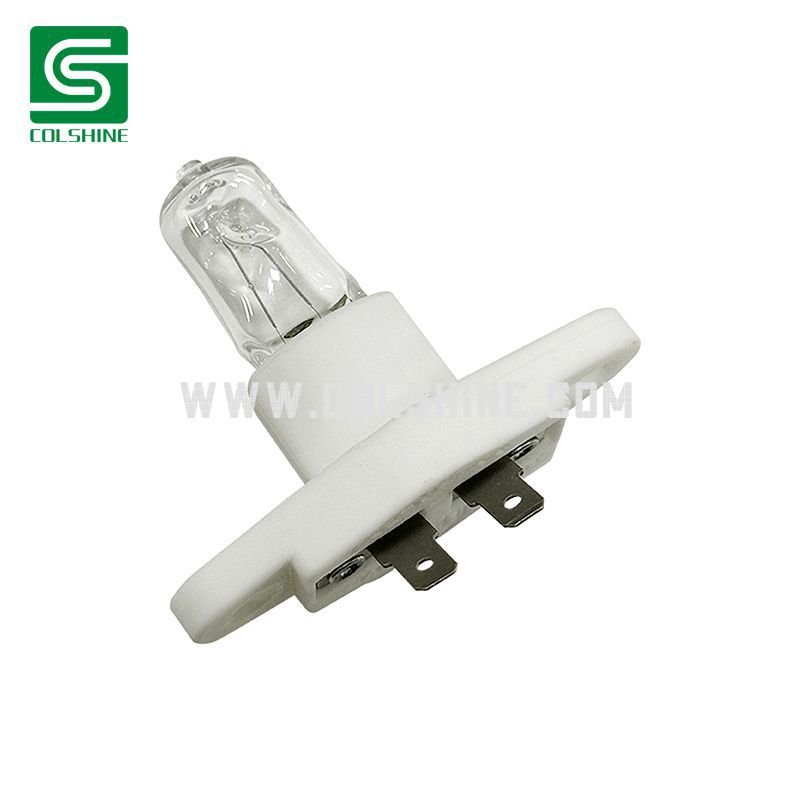

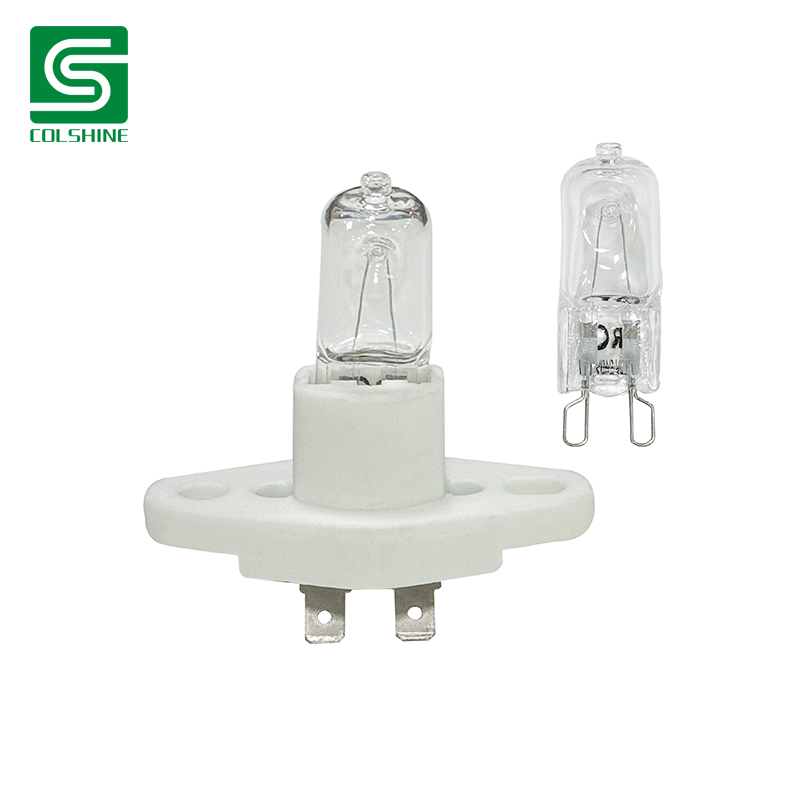

The Colshine G9 Oven Lamp and Socket is a specialized lighting solution designed for use in high-temperature environments, such as ovens. Below are the detailed features and specifications:

Colshine G9 Oven Lamp:

1.      Base Type:

·         G9 Base: This lamp features a G9 base, which is a bi-pin connector used for halogen and LED lamps. The pins are 9 mm apart.

2.      Material:

·         Glass Envelope: Made from high-temperature resistant glass, ensuring the lamp can operate safely within the oven's high heat.

3.      Temperature Resistance:

·         High-Temperature Capability: Specifically designed to withstand temperatures up to 300°C (572°F) or more.

4.      Electrical Specifications:

·         Voltage: Typically operates at standard household voltages, often around 230V.

·         Wattage: Commonly available in wattages ranging from 25W to 40W, providing adequate illumination inside the oven.

5.      Light Output:

·         Bright and Clear Light: Provides bright, clear light, enabling users to monitor the cooking process effectively.

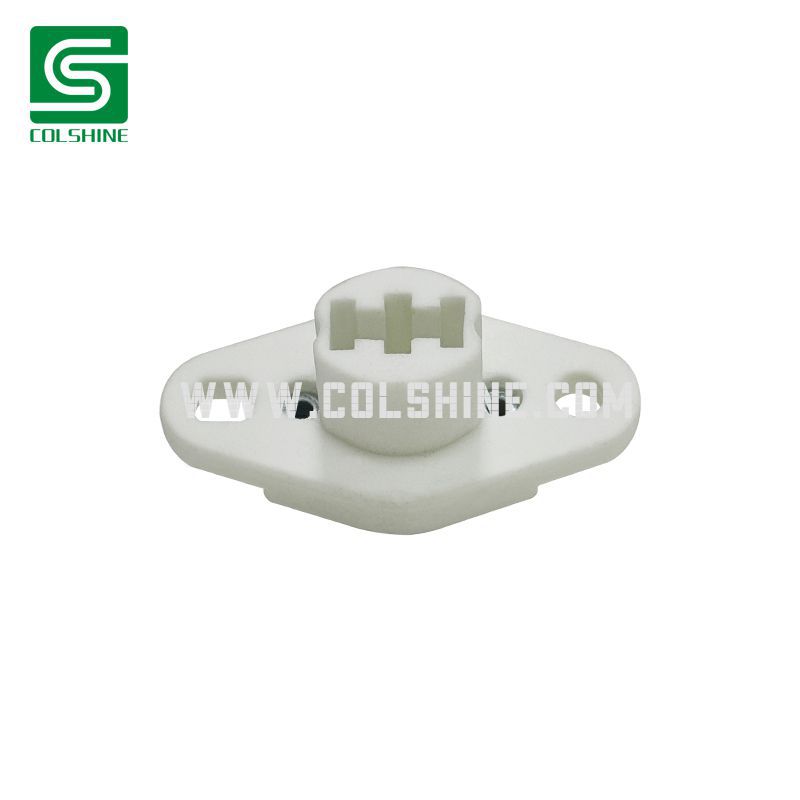

Colshine G9 Oven Socket:

1.      Material:

·         Ceramic Body: The socket is made from high-quality ceramic material, known for its excellent heat resistance and durability. This ensures safe and reliable operation in high-temperature environments.

·         Metal Contacts: The contacts are typically made from heat-resistant metals like brass, ensuring good conductivity and durability.

2.      Design:

·         Compact Design: The socket is designed to fit in the confined spaces of an oven cavity.

·         Mounting Features: It often includes mounting holes or brackets for secure installation within the oven.

3.      Temperature Resistance:

·         High-Temperature Capability: Designed to withstand the same high temperatures as the G9 oven lamp, up to 300°C (572°F) or more.

4.      Electrical Specifications:

·         Voltage: Compatible with standard household voltages (typically 230V).

·         Connection: Provides a secure connection for G9 lamps, ensuring stable performance.

5.      Safety and Standards:

·         Compliance: Meets various safety and quality standards, ensuring it is safe for use in high-temperature applications and resistant to thermal shock and electrical arcing.

Applications：

·         Primary Use: The Colshine G9 Oven Lamp and Socket are primarily used for providing internal lighting in ovens, allowing users to view the cooking process without opening the oven door.

·         Other Uses: Can also be utilized in other high-temperature environments, such as industrial furnaces or specialized heating equipment.

Overall, the Colshine G9 Oven Lamp and Socket offer a reliable and durable lighting solution for high-temperature applications, combining robust construction with the ability to withstand extreme heat.
